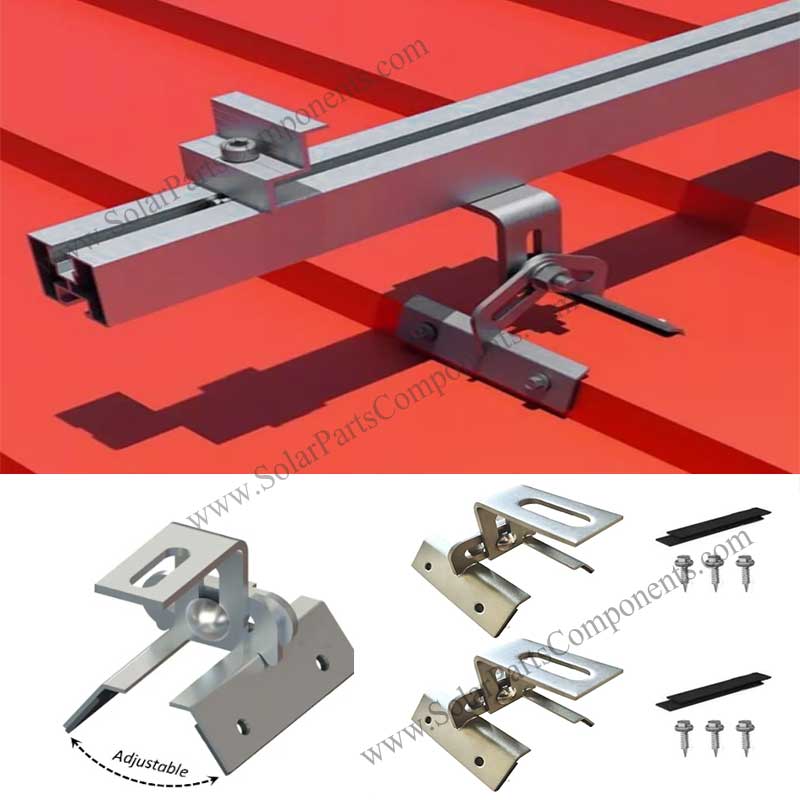

The trapezoidal adjustable solar mounting is the best solution for a trapezoidal metal roof. Each of our Adjustable solar Clamp mountings can be individually adjusted to ensure optimal alignment of your solar panels on the trapezoidal sheet roof.
The trapezoidal adjustable Clamp mounting is our most popular option. The clamp mouting is for attaching solar racking to a variety of trapezoidal metal rooftops. Because it can work with both vertically and horizontally oriented standing seam roof profiles and securely attaches to the metal paneling, providing easy installation and a long-lasting connection.
About this trapezoidal adjustable solar Clamp mounting
Roof type: sheet metal profile, trapezoidal
Material: A2 stainless steel &Aluminum 6005-T5
Colour：sliver

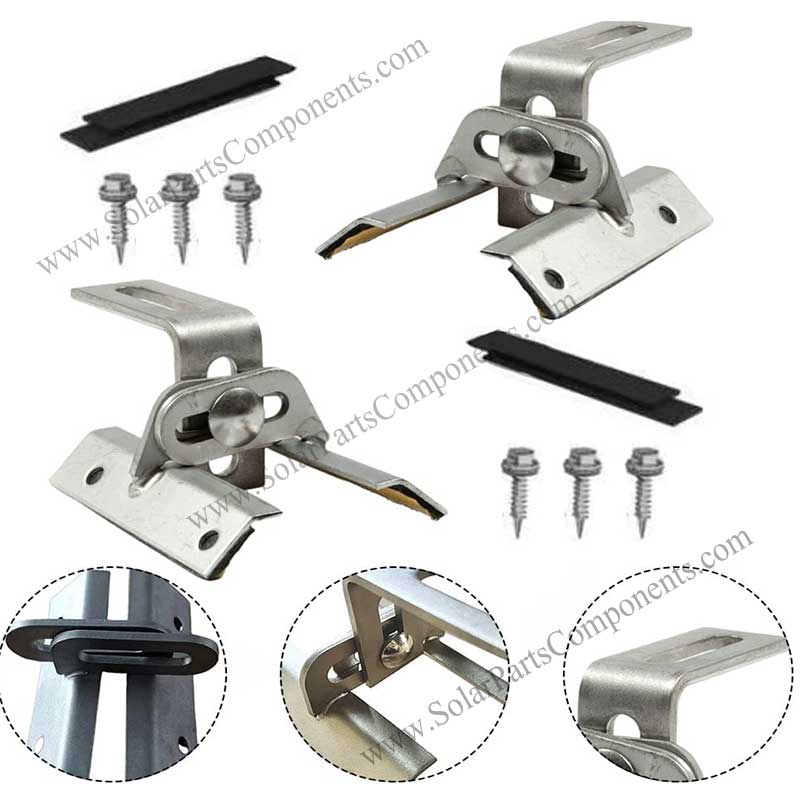

The mounting set: Trapezoidal Roof clamp, Mid clamps, End clamps, Aluminium Rail, Rail Splice…
Pre-assemble kits make quick installation
Fixed to the roof with screws directly – simple, fast, and labor cost-effective
Grade SUS304 for Trapezoidal Metal Roof clamp can keep anti-rust in bad weather. IP 65 class waterproof with our silicone rubber pads. And it is the cost-effective solution for both framed and unframed solar panel mounts, the tilt angle can be from 5 – 60 degrees.
In addition to, our trapezoidal adjustable Clamp for trapezoidal metal roofs penetrated with 4 sets of bolts and an EPDM washer. The mounting system fits almost all common trapezoidal metal roof profiles. The clamp mounting is adjustable to the width of the specific roof profile’s crown and offers variability in height for attaching all kinds of different mounting and rail systems, either top rail mount or side rail mount.
Technical Parameters For This trapezoidal adjustable solar Clamp mounting :
| Brief Descriptions: | |
| Trapezoidal adjustable solar Clamp mounting, Universal | |
| Item type: | Solar Panel Roof Mounting kits |
| Type: | SPC-CK-02-HR |
| Installation Site: | Metal Roof |
| Profile Material: | Aluminum Alloy |
| Fasten Parts | Stainless Steel |
| PV Modules: | Frameless or Framed panel |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Welcome get more details from www.SolarPartsComponents.com for this trapezoidal adjustable solar Clamp mounting system .
