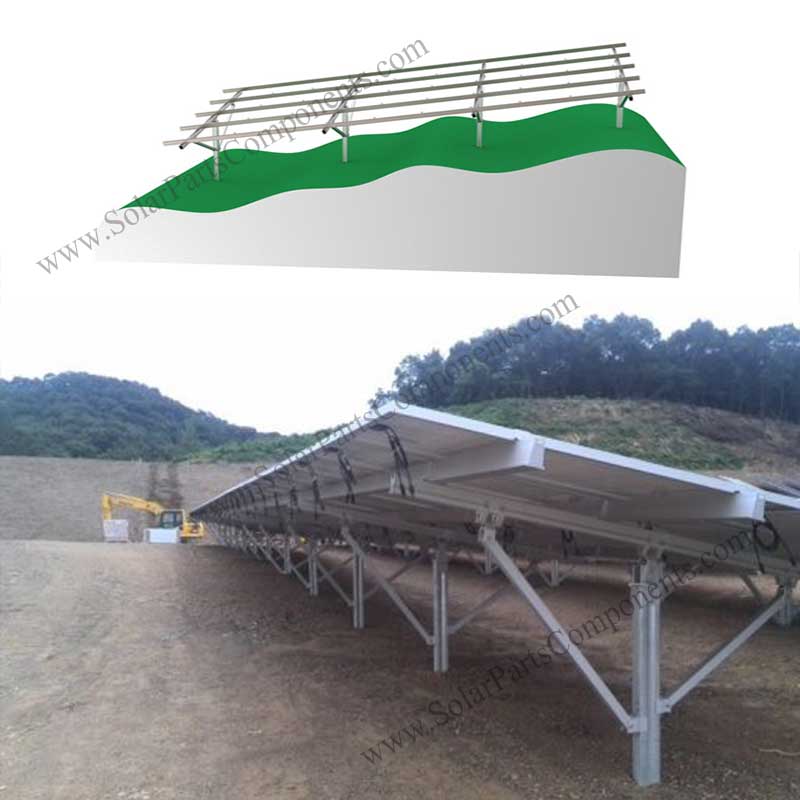

The pile driven Solar ground mounting is ideal for uneven terrain, which is single or double post available, and can achieve east-to-west adjustment, economical for large projects.

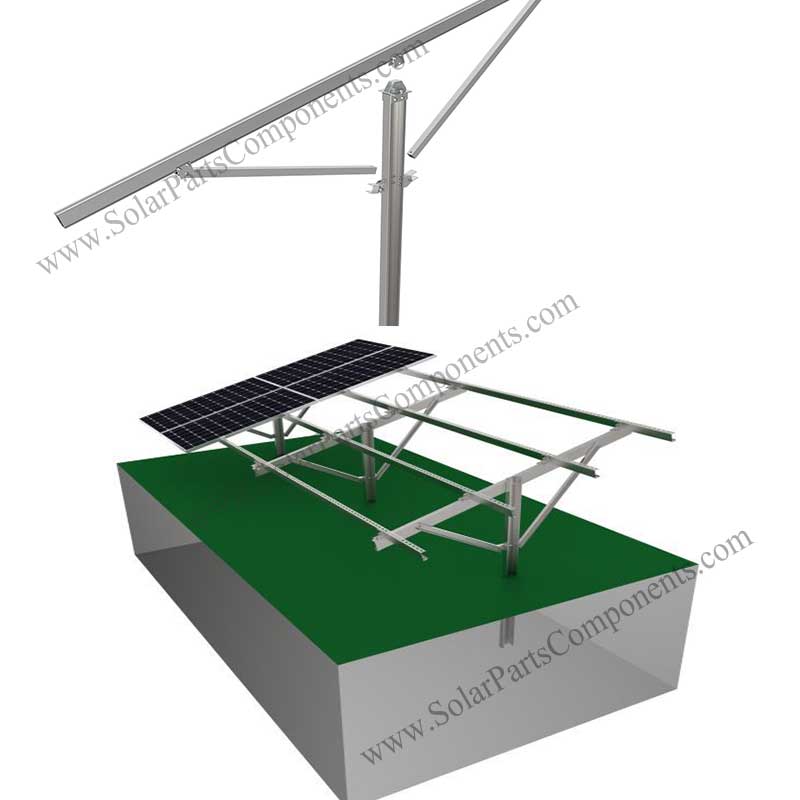

pile driven Solar ground mounting
Furthermore, the pile driven Solar ground mounting system is a very economical solution for large commercial and utility-scale installations, it’s suitable for both framed and frameless modules, especially on uneven terrain.
The use of ramming posts eliminates the need for additional excavation works, and pile-driven machines reduce labor and time remarkably on site. For large projects, this means high-cost savings. A single post system allows for easy maintenance around and under the modules. Double post optional for larger span and bigger array.
The advantages of the Pile driven solar ground mounting
- Utilize an ideal tilt angle to maximize power generation.
- Cleaning solar panels is much easier when the system is closer to the ground.
- Significant savings by pile-driven machine with fast piling
- Panels are more accessible for maintenance and allow for surrounding areas to remain unaffected
In sum, Pile driven ground-mounted panels are placed on the ground, allowing optimal sun exposure and ease of maintenance. They are ideal for properties with ample land but unsuitable roofs.
Technical Parameters For This Pile driven solar ground mounting :
| Brief Descriptions : | |
| Solar Pile Ground Mounting Systems, SPC-C-2V-PW
|
|
| Item type: | Galvanized Steel Ground Mounting Systems |
| Technical Parameters : | |
| Type : | Solar Pile Ground Mounting Systems |
| Installation Site : | Home / Indurstrial / Commercial |
| Installation Angle : | 0° ~ 60° |
| Profile Material : | Q235B (Hot-Dip Galvanized) / Aluminum Al6005-T5 |
| Fasten Parts : | SUS304 / Carbon Steel Screw Pile |
| Small Components : | AL 6005 – T5 ( Anodized ) / SUS 304 |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Welcome get more details from www.SolarPartsComponents.com for this ground mounting system .
